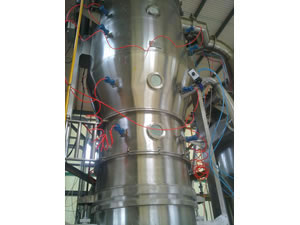

Fluidizing Drying Equipment

Fluidizing Drying Equipment

Scope of Application
The fluidizing drying equipment is mainly used for drying powder or granule from pharmaceutical, foodstuff and chemical industries, and so on.

Features of Fluidizing Drying Equipment
1. The fluidizing drying equipment accomplishes fluidized drying, heat transfer express.
2. Operation in hermetic closure and negative pressure provides no dust nuisance.
3. Through the use of antistatic filter material, processing is safe.
4. There is no blind angle, and the fluidizing drying equipment is easy to clean, while also offering no cross contamination. According to special requirements, customers can add a mixer or feeder with negative pressure system.
5. It compares to GFG Type, this unit has bigger fluidizing space.



Technical Parameters of Fluidizing Drying Equipment
Item I Item Unit Type
3 5 30 60 120 200 300 500
Container Of raw material Dia mm 300 400 700 1000 1200 1400 1600 1800
volume m3 /h 12 22 100 220 420 670 1000 1500
capacity Min Kg/batch 1.5 4 15 30 80 100 150 250
Max Kg/batch 4 6 36 72 140 240 360 600
Consume of steam Kg/batch 12 23 70 140 211 282 366 465
Amount of compressed air m3 /min 0.3 0.3 0.3 0.6 0.6 0.9 1.1 1.6
Power of fan kW 2.2 2.2 5.5 11 18.5 22 30 45
Temperature ℃ Adjustable from ambient to 120 ℃
Yield % >99
Moisture of end product % 0.2
Noise Db(A) ≤75
Height of main machine mm 2100 2300 2500 3000 3300 3800 4000 4400

As a primary fluidizing drying equipment manufacturer and supplier in China, we also provide a vacuum drying machine, flash evaporation drying machine, granulating coating machine, square vibrate sieve, and much more.
